Product Details
Synonym
PD-L1, CD274, B7-H1, PDCD1L1, PDCD1LG1
Source

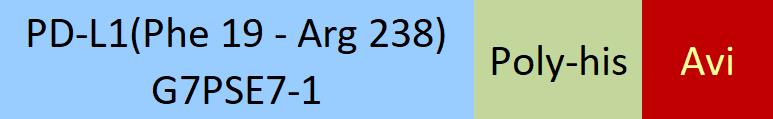

Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (PDL-C82E8) is expressed from human 293 cells (HEK293). It contains AA Phe 19 - Arg 238 (Accession # G7PSE7-1).
Predicted N-terminus: Phe 19
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version
This protein carries a polyhistidine tag at the C-terminus, followed by an Avi tag (Avitag™).
The protein has a calculated MW of 28.8 kDa. The protein migrates as 32-40 kDa under reducing (R) condition (SDS-PAGE) due to glycosylation.
Labeling
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
Protein Ratio
Passed as determined by the HABA assay / binding ELISA.
Purity
>90% as determined by SDS-PAGE.
>95% as determined by SEC-MALS.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Storage
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
Customers Also Viewed
Performance Data
SDS-PAGE
Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 90%.
SEC-MALS

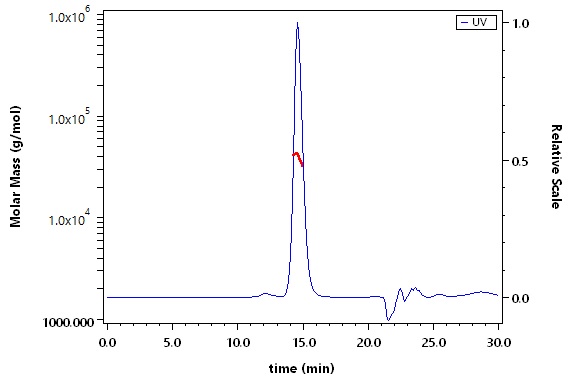

The purity of Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) is more than 95% and the molecular weight of this protein is around 31-47 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA
Immobilized Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) at 1 μg/mL (100 μL/well) on streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate can bind Human PD-1, Fc Tag, low endotoxin (Cat. No. PD1-H5257) with a linear range of 0.3-2 ng/mL (QC tested).
Protocol
Immobilized Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) at 1 μg/mL (100 μL/well) on streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate can bind Cynomolgus PD-1, Fc Tag (Cat. No. PD1-C5254) with a linear range of 0.3-5 ng/mL (Routinely tested).
Protocol

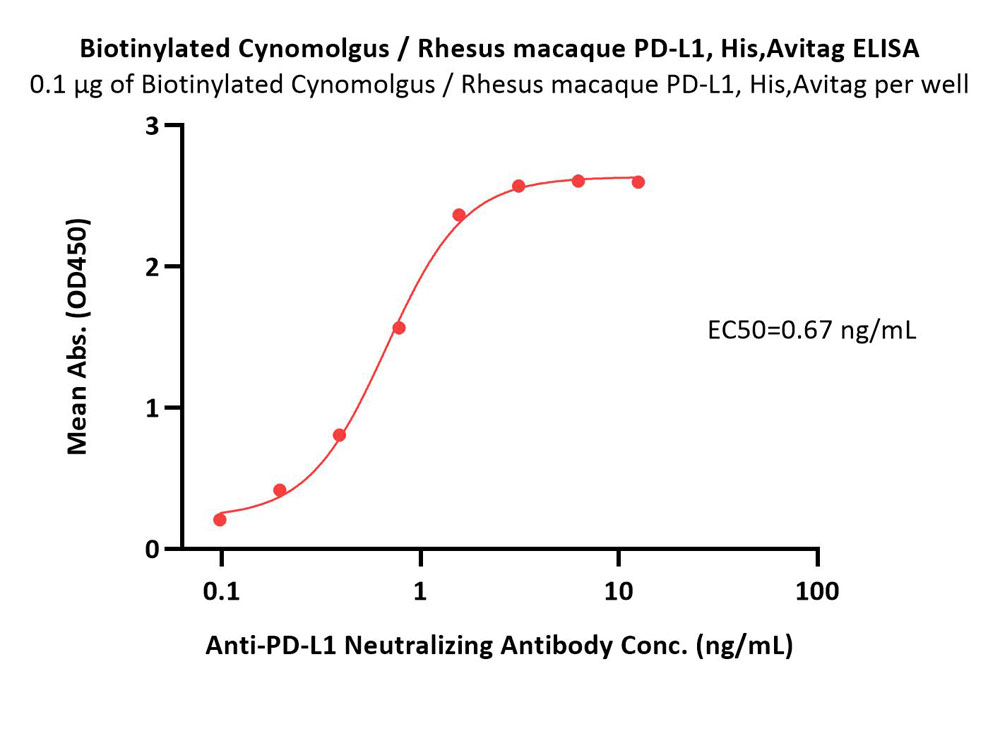

Immobilized Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) at 1 μg/mL (100 μL/well) on streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate can bind Anti-PD-L1 Neutralizing Antibody with a linear range of 0.1-3 ng/mL (Routinely tested).
Protocol

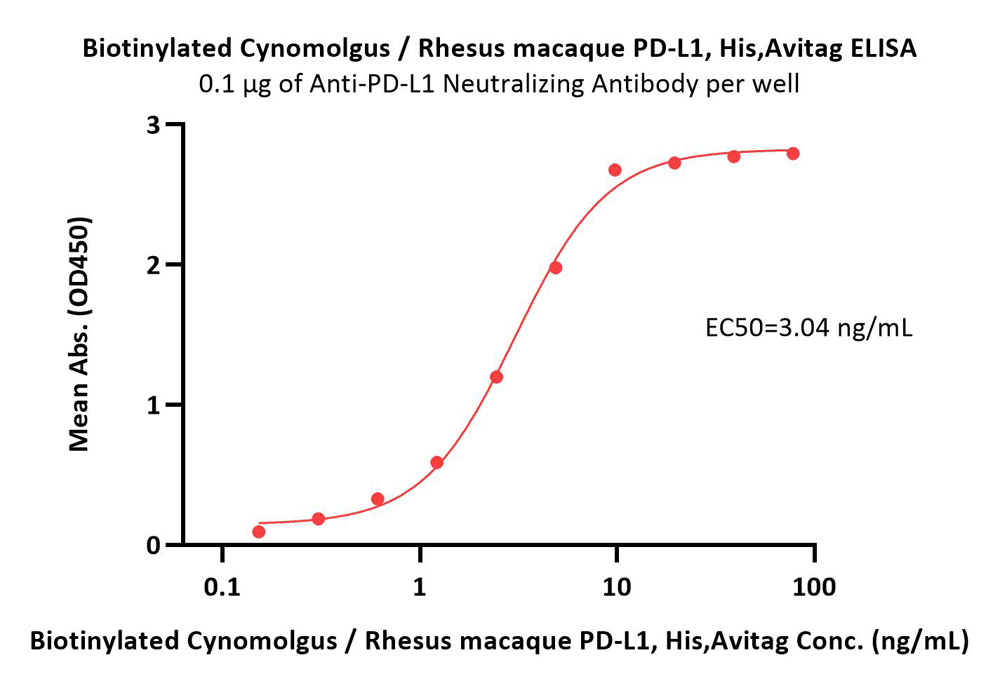

Immobilized Anti-PD-L1 Neutralizing Antibody at 1 μg/mL (100 μL/well) can bind Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) with a linear range of 0.2-10 ng/mL (Routinely tested).
Protocol
Bridging ELISA
Validated with Bispecific Antibody.

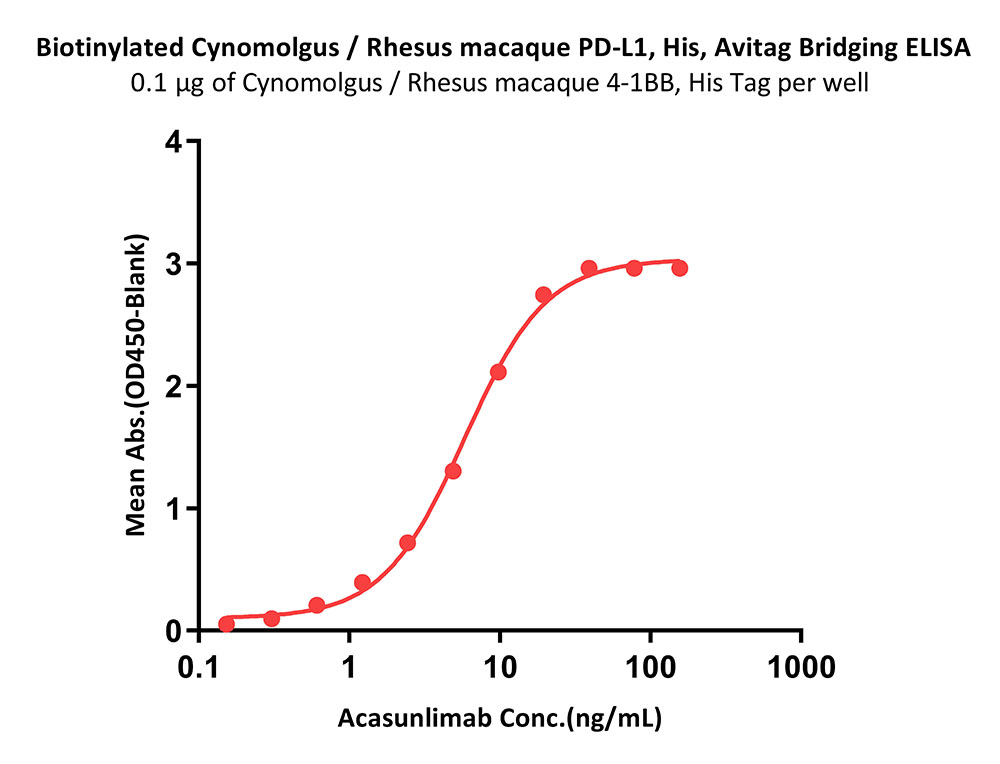

Immobilized Cynomolgus / Rhesus macaque 4-1BB, His Tag (Cat. No. 41B-C52H4) at 1 μg/mL, add increasing concentrations of Acasunlimab and then add Biotinylated Cynomolgus / Rhesus macaque PD-L1, His, Avitag (Cat. No. PDL-C82E8) at 0.2 μg/mL. Detection was performed using HRP-conjugated streptavidin with sensitivity of 0.15 ng/mL (Routinely tested).
Validated with Bispecific Antibody.

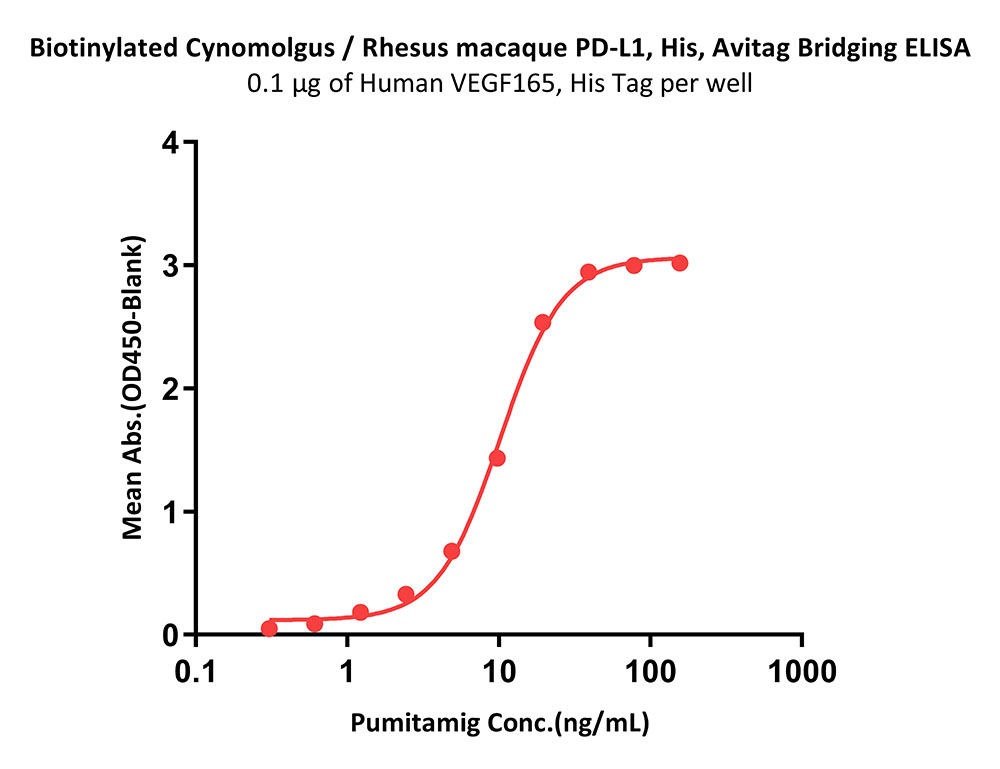

Immobilized Human VEGF165, His Tag (Cat. No. VE5-H5248) at 1 μg/mL, add increasing concentrations of Pumitamig and then add Biotinylated Cynomolgus / Rhesus macaque PD-L1, His, Avitag (Cat. No. PDL-C82E8) at 0.2 μg/mL. Detection was performed using HRP-conjugated streptavidin with sensitivity of 0.31 ng/mL (Routinely tested).
Bioactivity-SPR
Cynomolgus PD-1, Fc Tag (Cat. No. PD1-C5254) captured on CM5 chip via Anti-human IgG Fc antibodies surface can bind Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) with an affinity constant of 6.59 μM as determined in a SPR assay (Biacore 8K) (Routinely tested).
Protocol
