Save Product
Product Details
Synonym
PD-L1, CD274, B7-H1, PDCD1L1, PDCD1LG1
Source

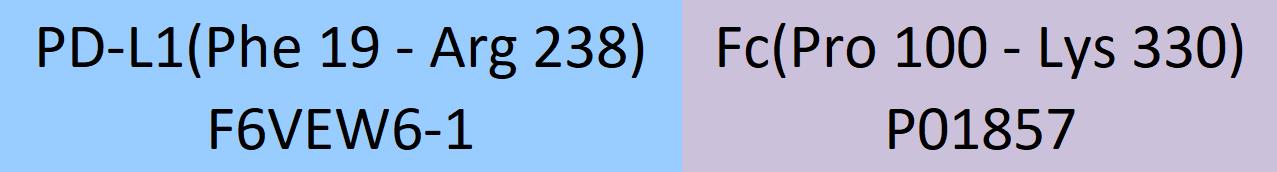

Cynomolgus / Rhesus macaque PD-L1, Fc Tag (PD1-C5253) is expressed from human 293 cells (HEK293). It contains AA Phe 19 - Arg 238 (Accession # F6VEW6-1). In the region Phe 19 - Arg 238, the AA sequence of Cynomolgus and Rhesus macaque PD-L1 are homologus.
Predicted N-terminus: Phe 19
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version
This protein carries a human IgG1 Fc tag at the C-terminus.
The protein has a calculated MW of 51.8 kDa. The protein migrates as 60-70 kDa under reducing (R) condition (SDS-PAGE) due to glycosylation.
Endotoxin
Less than 1.0 EU per μg by the LAL method / rFC method.
Purity
>95% as determined by SDS-PAGE.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Storage
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
Customers Also Viewed
Performance Data
SDS-PAGE
Cynomolgus / Rhesus macaque PD-L1, Fc Tag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 95%.
SEC-MALS

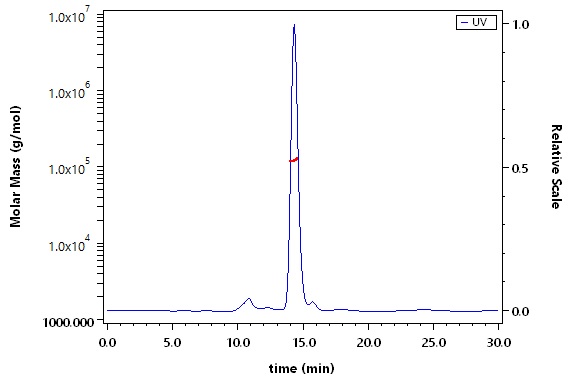

The purity of Cynomolgus / Rhesus macaque PD-L1, Fc Tag (Cat. No. PD1-C5253) is more than 85% and the molecular weight of this protein is around 110-140 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA

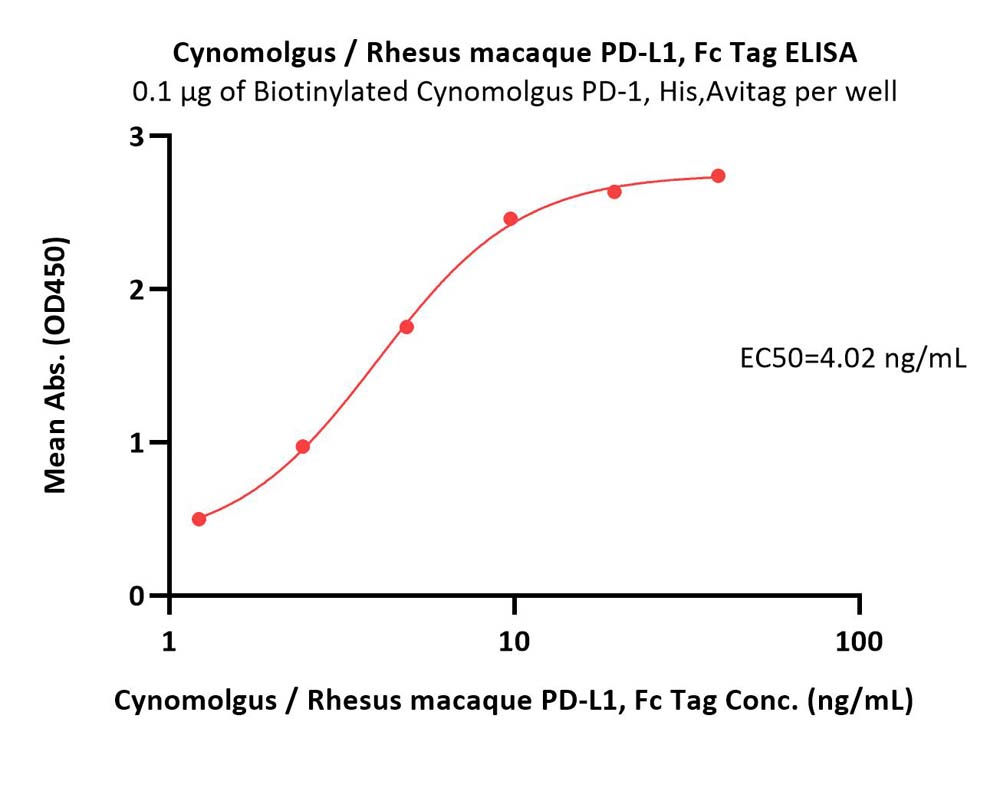

Immobilized Biotinylated Cynomolgus PD-1, His,Avitag (Cat. No. PD1-C82E6) at 1 μg/mL (100 μL/well) on streptavidin precoated (0.5 μg/well) plate, can bind Cynomolgus / Rhesus macaque PD-L1, Fc Tag (Cat. No. PD1-C5253) with a linear range of 1-5 ng/mL (Routinely tested).
Protocol

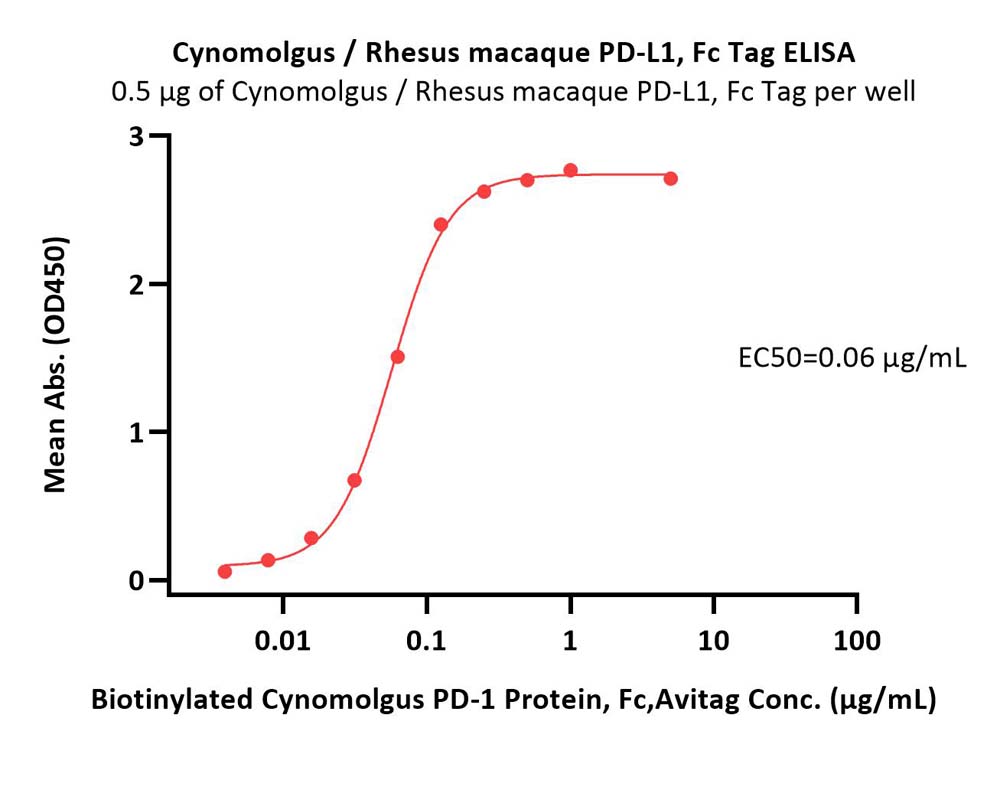

Immobilized Cynomolgus / Rhesus macaque PD-L1, Fc Tag (Cat. No. PD1-C5253) at 5 μg/mL (100 μL/well) can bind Biotinylated Cynomolgus PD-1 Protein, Fc,Avitag (Cat. No. PD1-C82F7) with a linear range of 0.004-0.125 μg/mL (Routinely tested).
Protocol
Bioactivity-BLI

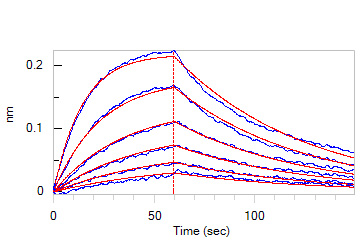

Loaded Cynomolgus / Rhesus macaque PD-L1, Fc Tag (Cat. No. PD1-C5253) on Protein A Biosensor, can bind Cynomolgus PD-1, His Tag (Cat. No. PD1-C52H5) with an affinity constant of 4.2 μM as determined in BLI assay (ForteBio Octet Red96e) (QC tested).
Protocol
Loaded Cynomolgus PD-1, His Tag (Cat. No. PD1-C52H5) on HIS1K Biosensor, can bind Cynomolgus / Rhesus macaque PD-L1, Fc Tag (Cat. No. PD1-C5253) with an affinity constant of 28.3 nM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
