Product Details
Synonym
PDCD1, PD1, CD279, SLEB2
Source
Biotinylated Human PD-1, Fc,Avitag,His Tag (PD1-H82F4) is expressed from human 293 cells (HEK293). It contains AA Leu 25 - Gln 167 (Accession # Q15116-1).
Predicted N-terminus: Leu 25
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version

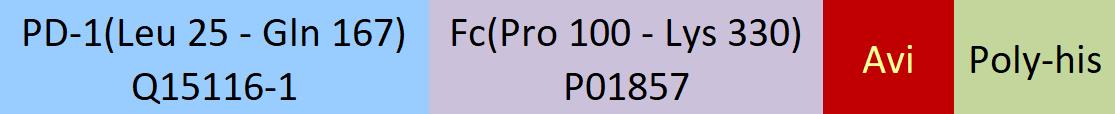

This protein carries a human IgG1 Fc fragment at the C-terminus, followed by a polyhistidine tag. The Avi tag (Avitag™) is inserted in-between the Fc tag and polyhistidine tag.
The protein has a calculated MW of 45.5 kDa. The protein migrates as 55-65 kDa under reducing (R) condition, and 115-130 kDa under non-reducing (NR) condition (SDS-PAGE) due to glycosylation.
Labeling
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
Protein Ratio
Passed as determined by the HABA assay / binding ELISA.
Purity
>95% as determined by SDS-PAGE.
>95% as determined by SEC-MALS.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Storage
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
Customers Also Viewed
Performance Data
SDS-PAGE
Biotinylated Human PD-1, Fc,Avitag,His Tag on SDS-PAGE under reducing (R) and non-reducing (NR) conditions. The gel was stained with Coomassie Blue. The purity of the protein is greater than 95%.

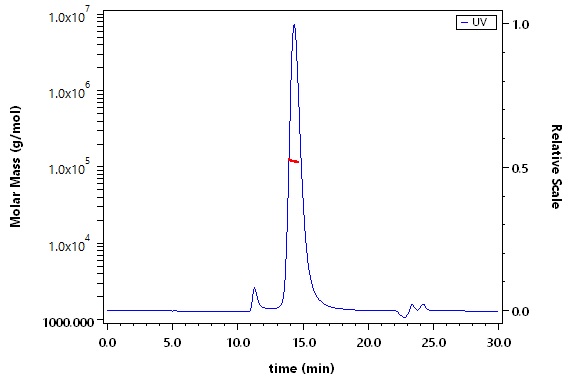

SEC-MALS
The purity of Biotinylated Human PD-1, Fc,Avitag,His Tag (Cat. No. PD1-H82F4) is more than 95% and the molecular weight of this protein is around 113-133 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA
Immobilized Human PD-L1, Fc Tag (HPLC-verified) (Cat. No. PD1-H5258) at 5 μg/mL (100 μL/well) can bind Biotinylated Human PD-1, Fc,Avitag,His Tag (Cat. No. PD1-H82F4) with a linear range of 10-156 ng/mL (QC tested).
Protocol
Immobilized Human PD-L2, Fc Tag (HPLC verified) (Cat. No. PD2-H5251) at 5 μg/mL (100 μL/well) can bind Biotinylated Human PD-1, Fc,Avitag,His Tag (Cat. No. PD1-H82F4) with a linear range of 10-40 ng/mL (Routinely tested).
Protocol

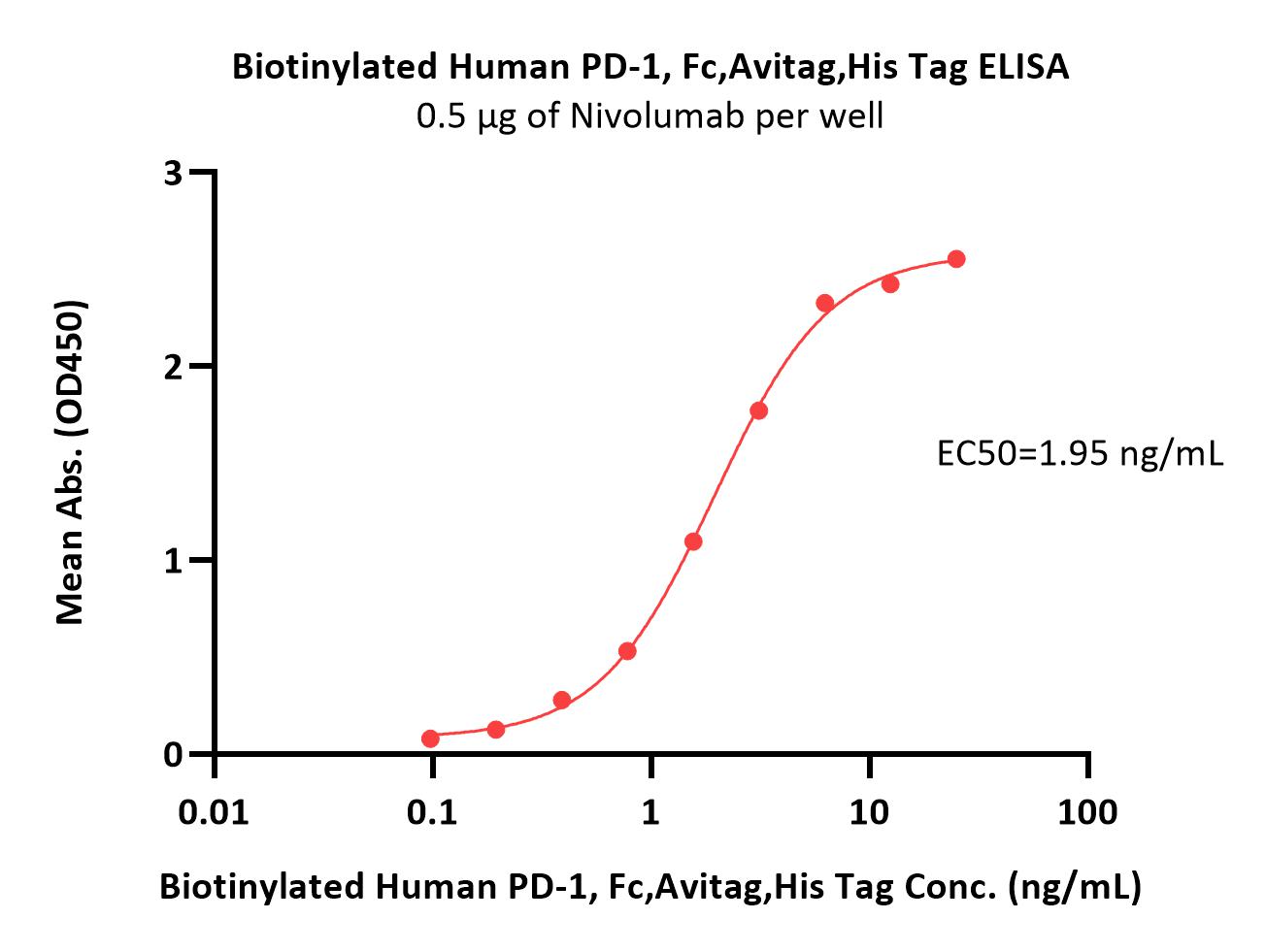

Immobilized Nivolumab at 5 μg/mL (100 μL/well) can bind Biotinylated Human PD-1, Fc,Avitag,His Tag (Cat. No. PD1-H82F4) with a linear range of 0.1-3 ng/mL (Routinely tested).
Protocol

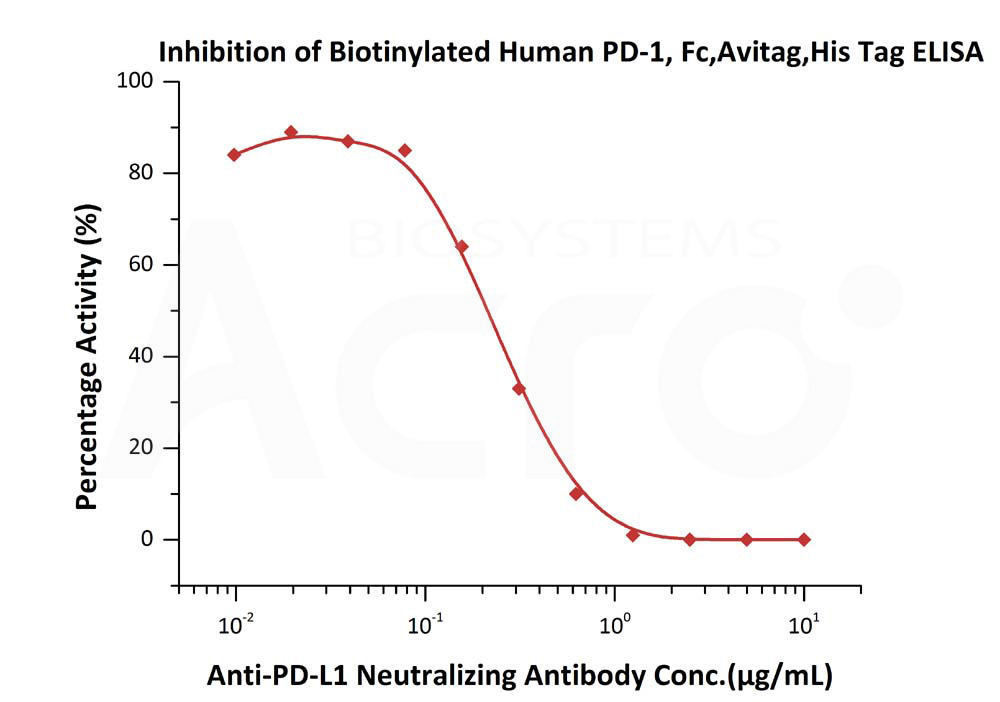

Serial dilutions of Anti-PD-L1 Neutralizing Antibody were added into Human PD-L1, Fc Tag (HPLC-verified) (Cat. No. PD1-H5258): Biotinylated Human PD-1, Fc,Avitag,His Tag (Cat. No. PD1-H82F4) binding reactions. The half maximal inhibitory concentration (IC50) is 0.2394 μg/mL (Routinely tested).
Protocol

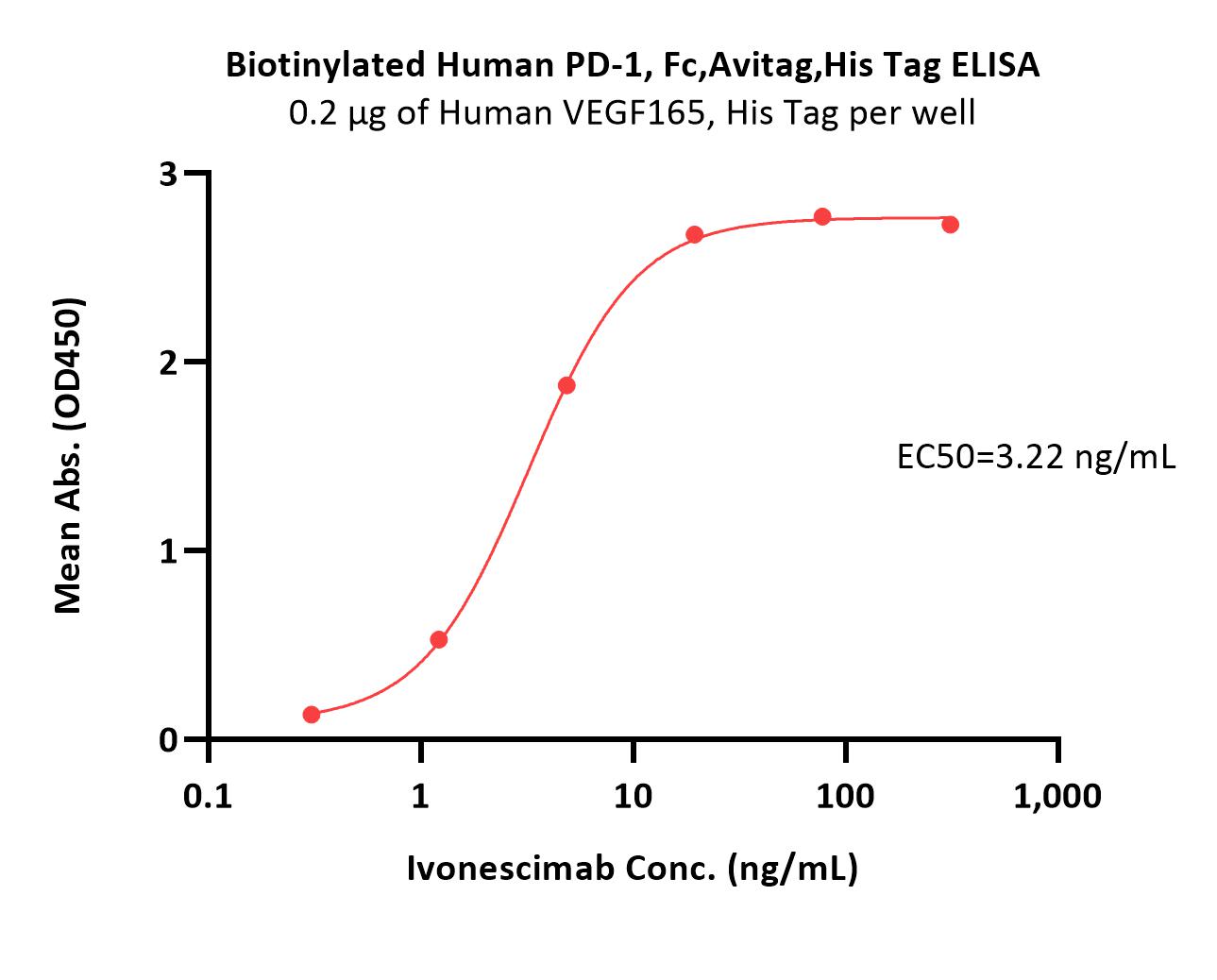

Immobilized Human VEGF165, His Tag (Cat. No. VE5-H5248) at 2 μg/mL, add increasing concentrations of Ivonescimab and then add Biotinylated Human PD-1, Fc,Avitag,His Tag (Cat. No. PD1-H82F4) at 2 μg/mL. Detection was performed using HRP-conjugated Streptavidin (Acro, Cat. No. STN-NH913) with sensitivity of 3.22 ng/mL (Routinely tested).
Protocol

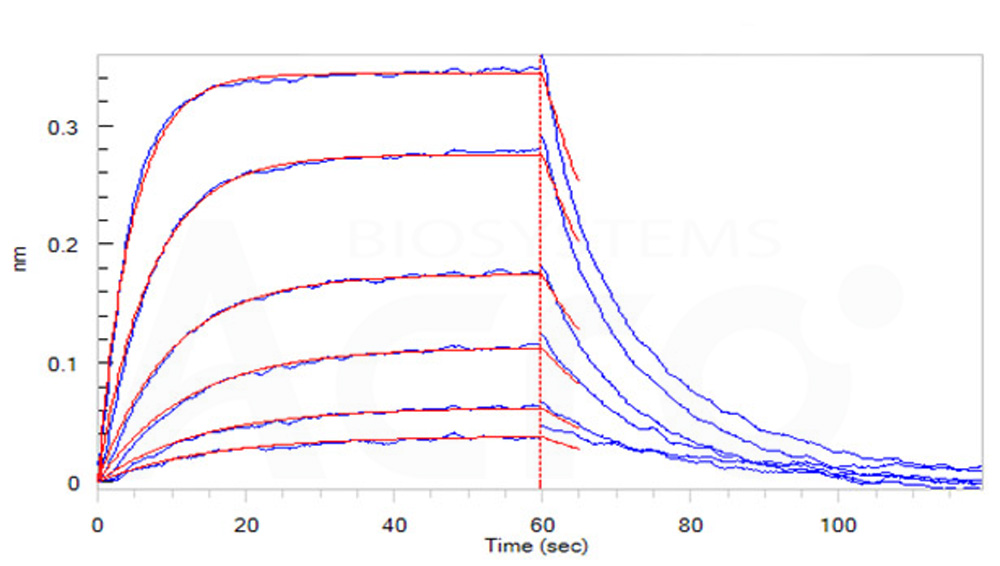

Bioactivity-BLI
Loaded Biotinylated Human PD-1, Fc,Avitag,His Tag (Cat. No. PD1-H82F4) on SA Biosensor, can bind Human PD-L1, His Tag (HPLC verified) (Cat. No. PD1-H5229) with an affinity constant of 1.6 μM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
Loaded Biotinylated Human PD-1, Fc,Avitag,His Tag (Cat. No. PD1-H82F4) on SA Biosensor, can bind PD-L2, His Tag (SPR verified) (Cat. No. PD2-H5220) with an affinity constant of 0.42 μM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
